Panasonic's all-new, shorter brushless motor has helped designers to achieve the most compact high power impact driver with optimum centre-balanced ergonomics for more comfortable working, even in restricted spaces.
The ‘Self-Drilling Screw mode’ which limits the risk of stripping the thread on fasteners or materials during screwing-in (Less than Ø4 x 15 mm) by automatically switching the rotation speed from high speed to low speed.
This new function starts at highest speed to cut hole and then transfers to ‘H mode’ (High impact) to powerfully cut initial thread.
Load is then reduced, so it automatically switches to slower ‘S mode’ (Soft impact) to limit potential of stripping threads on fastener or material (Less than Ø4×15mm).
The Clutch is a good match between the intelligent engine and the impact mechanism, The EY75A7 prevents inefficient work and reduces damage to the propeller, noise and vibration
Improved bearing system: The new bearings in the screw greatly reduce any slack and improve accuracy.
The solid hybrid switch contains essential metal parts for 200% longer lifetime.
No-load speed (low / high) in r / min (rpm) 0-2500 / 0-1450 / 0-950
Maximum torque (screwing in soft / hard material) 26/120/160 Nm
Number of strokes (low / medium / high) 0-1900 / 0-2900 / 0-3100
M6 - M16 Standard Bolt
M5 - M12 Machine Screw
Size (L x H x W): 118 x 242 x 66mm

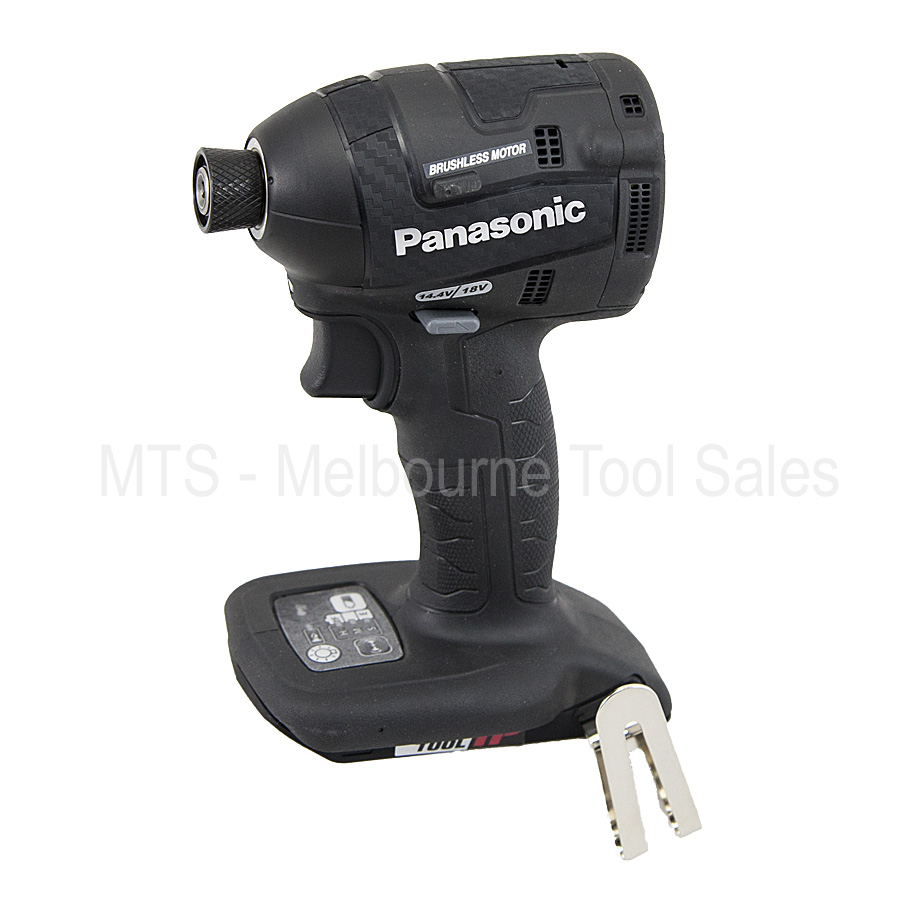

Panasonic 14.4/18V Impact Driver - EY75A7 (Bare tool only)
12 Months Warranty
NB: Skin Only - Does not include battery or charger
