FEATURES:
With sliding function for wide work pieces.
For sawing wood, coated panels and plastics
Transport lock and cable winder
Die-cast aluminium work bench
Laser for exact display of the cut
Freely adjustable table extension on both sides with a practical support surface and integrated crosscut fence
Integrated working light
Integrated cutting depth control
Saw blade stop for easy saw blade change
Chip collection bag for clean air at the workplace
SPECIFICATIONS:
Dimensions L x W x H 820 x 543 x 355 mm
Support surface 364 x 700 mm
Maximum cutting width 90°/45° 305 mm/205 mm
Maximum cutting depth at 90°/45° 65 mm/36 mm
Maximum cross-section of the workpiece
- Straight cut 90°/90° 305 x 65 mm
- Double mitre 45°/45° 205 x 36 mm
Idle revolution 5,000 /min
Revolutions at rated load 3,756 /min
Cutting speed 42 m/s
Saw blade Ø 216 x 30 mm
Turntable setting left/right 47 °/47 °
Saw blade tilt left/right 45 °/0 °
Rated input power 1.5 kW
Weight 14 kg
INCLUDED:

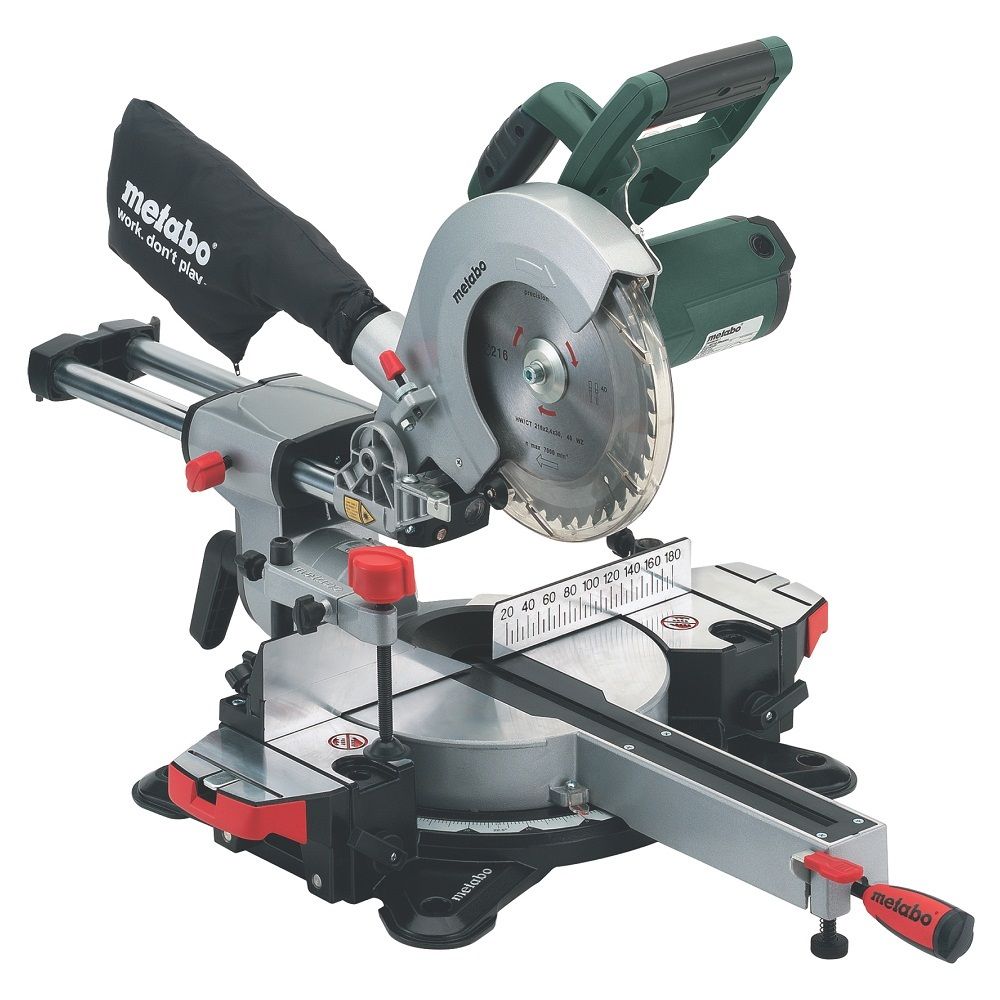

Metabo Sliding compound mitre saw - KGS 216 M
Carbide circular saw blade with alternately bevel-ground tooth (40 teeth)
2 table length extensions
Workpiece clamp
tool for saw blade change
Dust extraction adapter 0910059955
Chip collection bags
Laser
Instruction Manual
3 Year Metabo Warranty
*Metabo XXL Warranty Program is a 2-year extension of the 1-year warranty for customers who register personal information online at www.metabo.com/xxl within 4 weeks of purchase
