Ideal for drilling anchors and fixing holes into concrete, brick and masonry from 4mm to 24mm
Rotation stop mode for light chiselling in plaster, tiles and render
Features:
Best in class vibration, 6.6m/s² reduces user fatigue and maximises operating periods
Bright white LED with delay feature improves visibility and provides flashlight functionality
Compact L-shape design allows access in tight spaces while providing optimal balance for the user
Variable speed, reversing switch delivers versatility in all applications for those difficult jobs
Factory-set clutch reduces sudden, high torque reactions if bit jams
360° side handle for better control and ease of use in tight spaces
D25301D
For use with DEWALT corded and cordless SDS-Plus hammers
Ideal for dust free drilling up to 16 mm in diameter
Quick-fit system for easy tool free assembly and release
Specifications:
Voltage 18V MAX
Concrete Optimum: 5/32 - 1/2"
Impact Energy : 2.1Joules
Vibration Measurement : 6.9 m/s2
No Load Speed : 0-1,200rpm
Blows per Minute 0-4500 bpm
Tool Holder SDS-Plus
Max. Drilling Capacity [Wood] 26 mm
Max. Drilling Capacity [Metal] 13 mm
Max. Drilling Capacity [Concrete] 24 mm
Weight 2.5 kg
Length 301 mm
Height 202 mm
Chipping :Yes
Vibration Control :Yes - SHOCKS
D25301D
Fits Corded and Cordless SDS-Plus

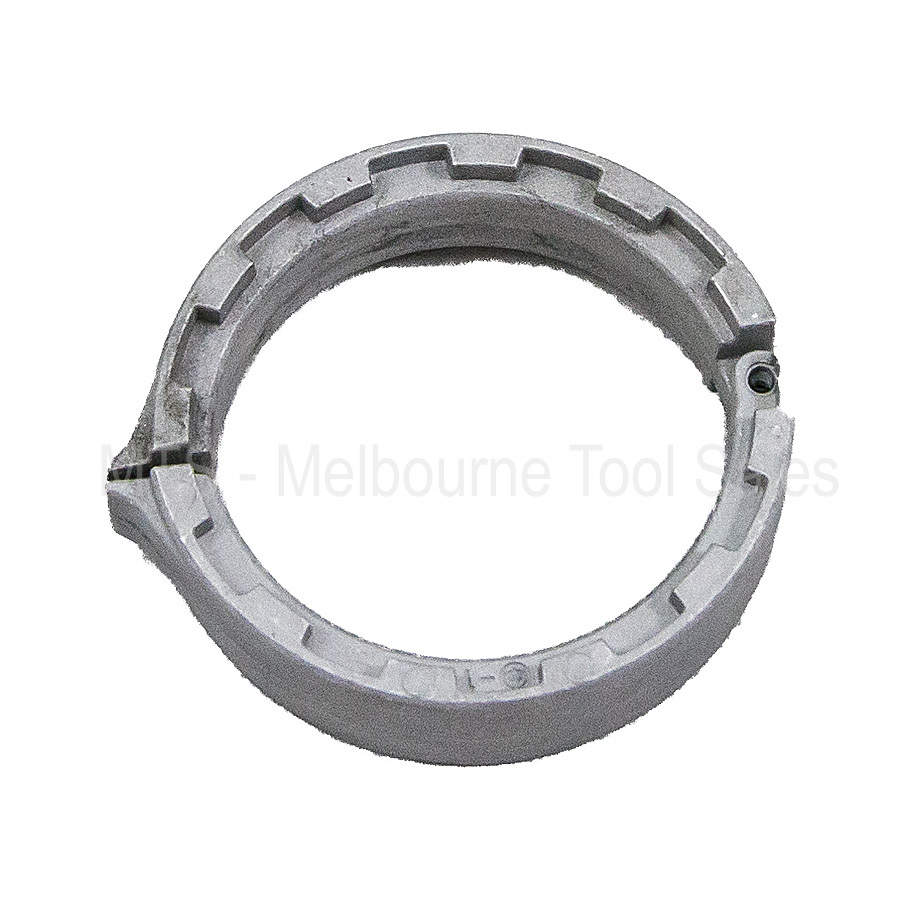

Collar Diameter 43 / 54 mm
Max. Drill Bit Diameter 16 mm
Max. Chisel Diameter
Max. Drill Bit Length 224 mm
Max. Drilling Depth 150 mm
Hose Length 1500 mm
Hose Diameter 35 mm

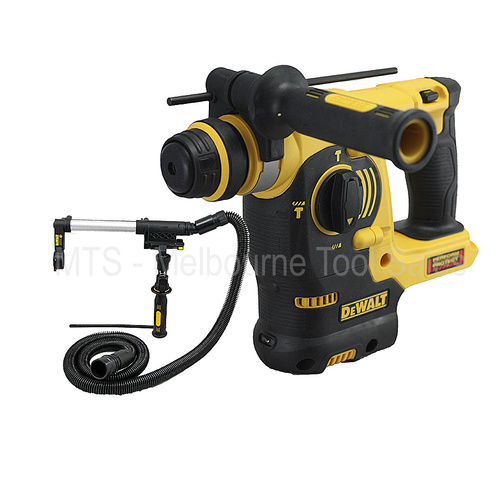

Includes:

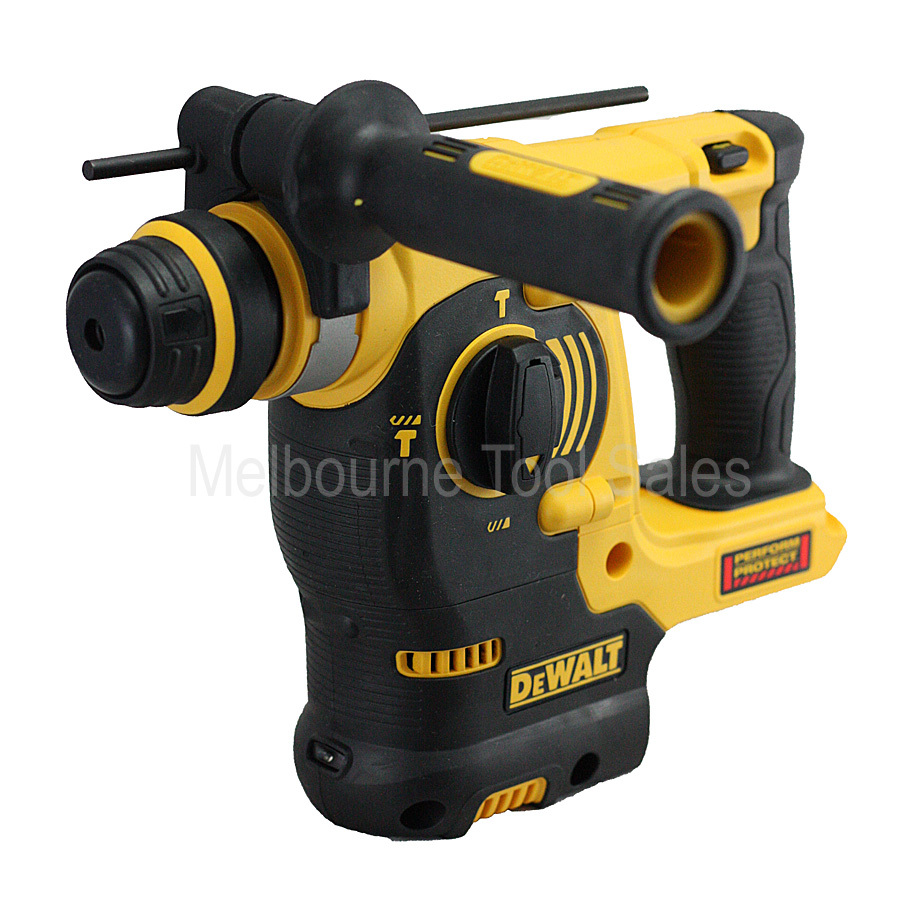

Dewalt SDS hammer drill - DCH253

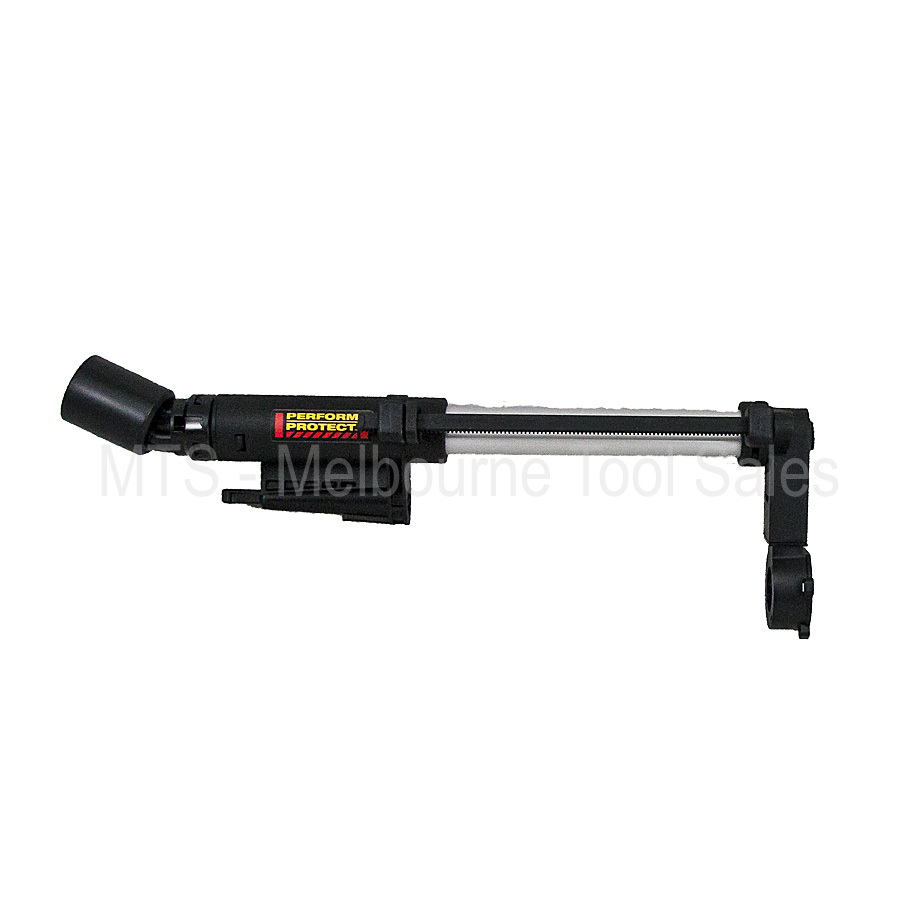

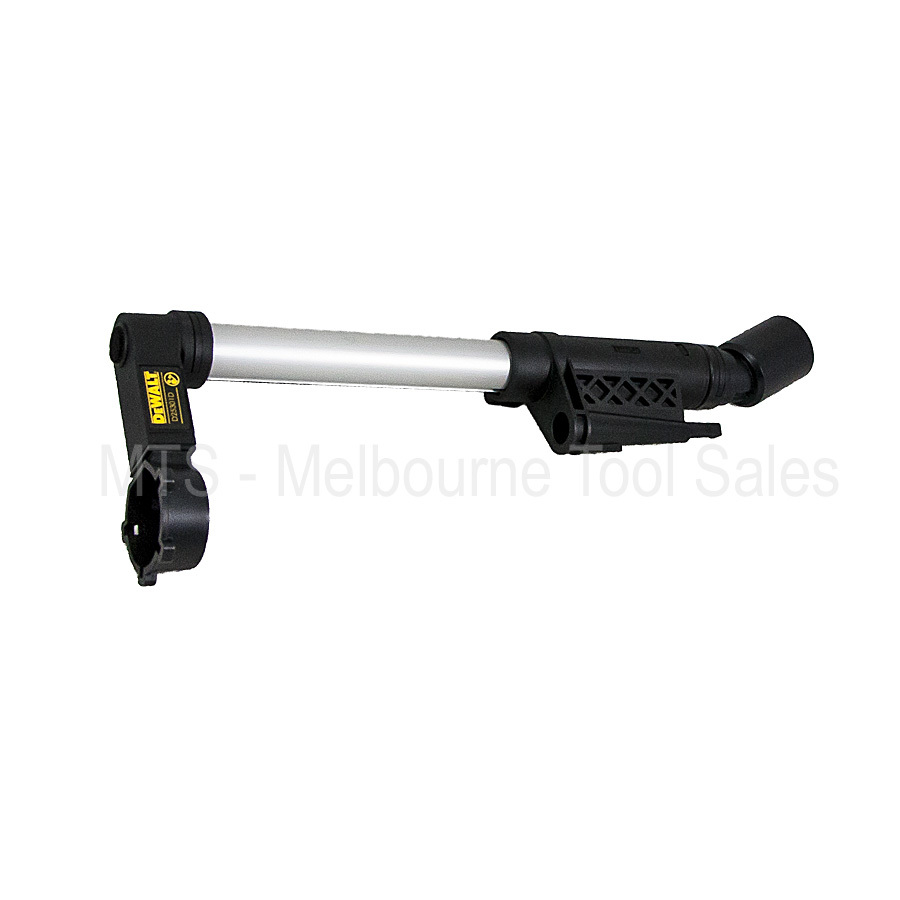

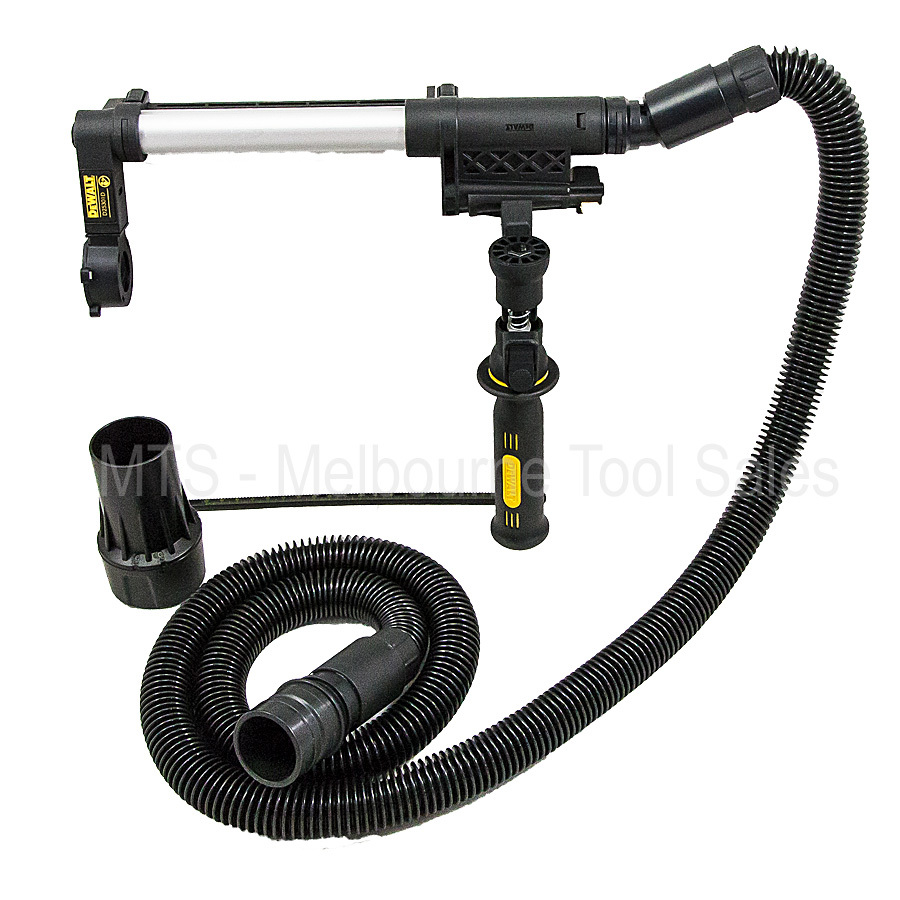

Dewalt Dust Extraction Telescope - D25301D

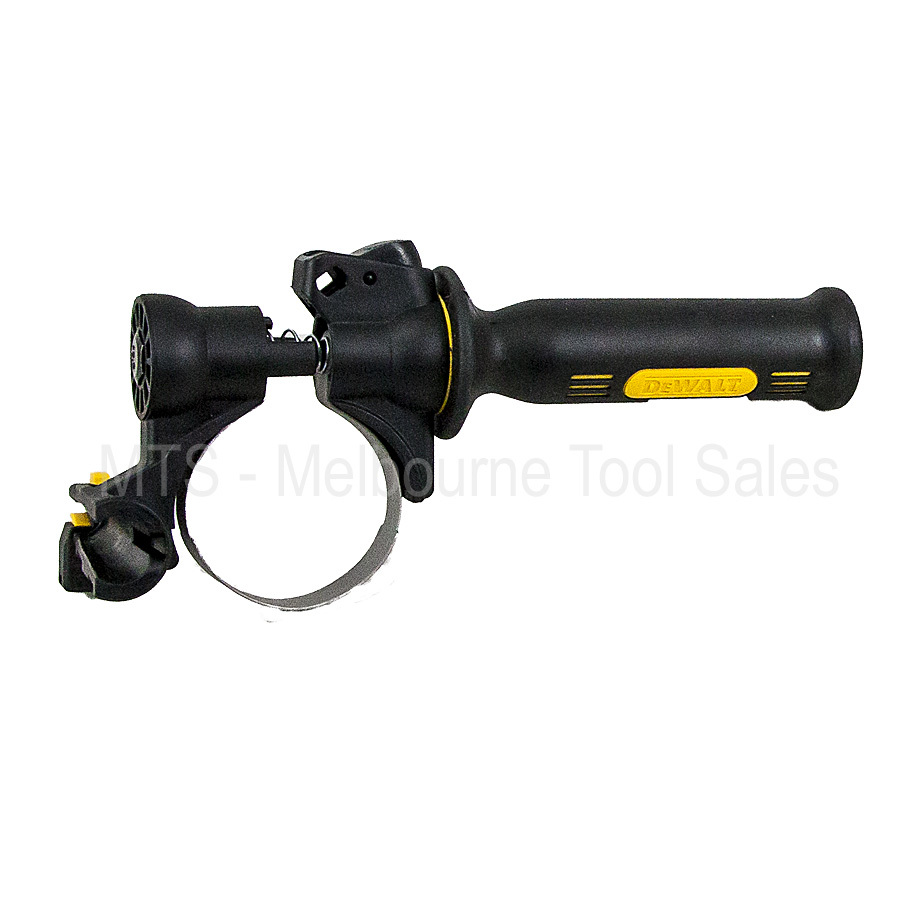

Side Handle

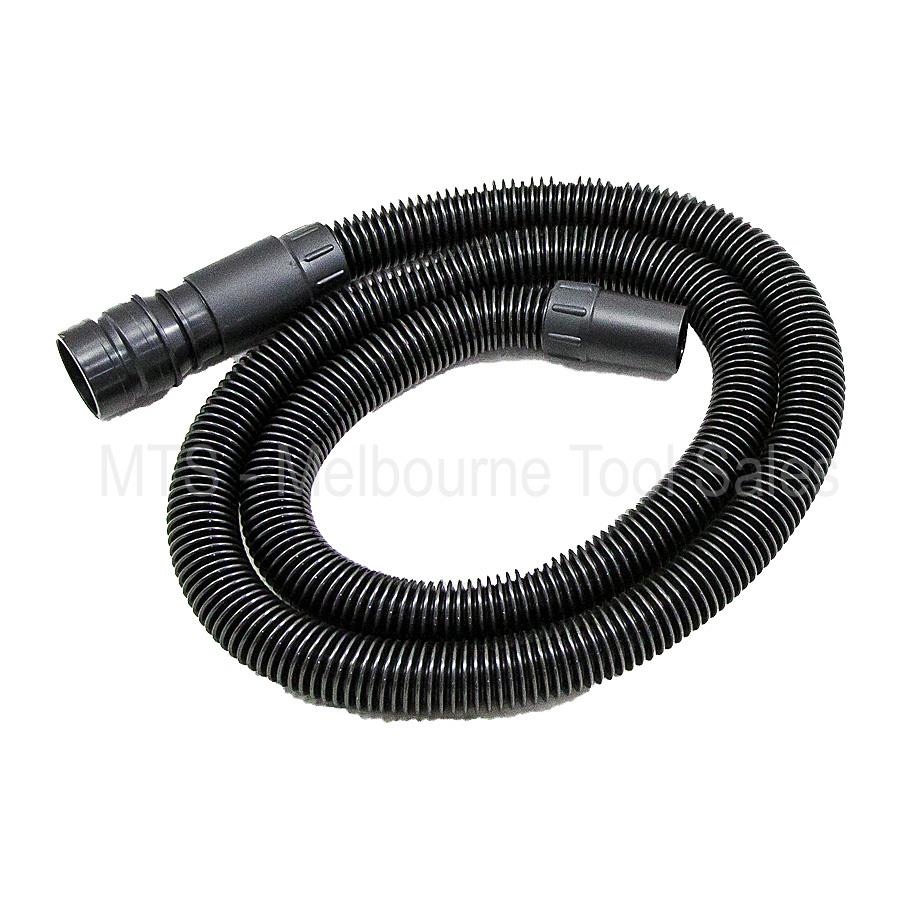

Hose
NB: Bare unit only - Does not include battery or charger
