Latest generation 18V /20v XR Li-Ion Brushless 16Ga nailer offers the cutting edge in nailing technology.
BRUSHLESS motor offers runtime that cannot be beaten in a compact package
Compact, lightweight and ergonomic design makes the tool easy and comfortable to use but durable enough for those tough worksites
Mechanical rather than gas operation offers low running costs and consistent performance at low temperatures. No more running out of Gas!
Sequential mode allows for precision placement and the bump operating mode provides the user with production speed of up to 4 nails per second
Depth of drive can be easily adjusted using the thumb wheel depth adjuster
Tool free jam clearance minimises down time for the user
Trigger and contact trip lock-off and prevent accidental dis-charge of Nailer


Charges XR Li-Ion DEWALT 10.8V, 14.4V, 18V Slide type batteries including 20V
Charges 2.0Ah battery pack in 30 minutes
DEWALT 2 stage charging system
Diagnostics with bright LED indicator communicates battery charge status. These include charged, charging, power problem, and battery too hot or too cold
Intelligent Charger varies charge rate according to battery type to increase battery pack life and overall management of the battery


Premium XR Lithium Ion pack provides up to 60% more capacity than standard 18V/20V MAX battery

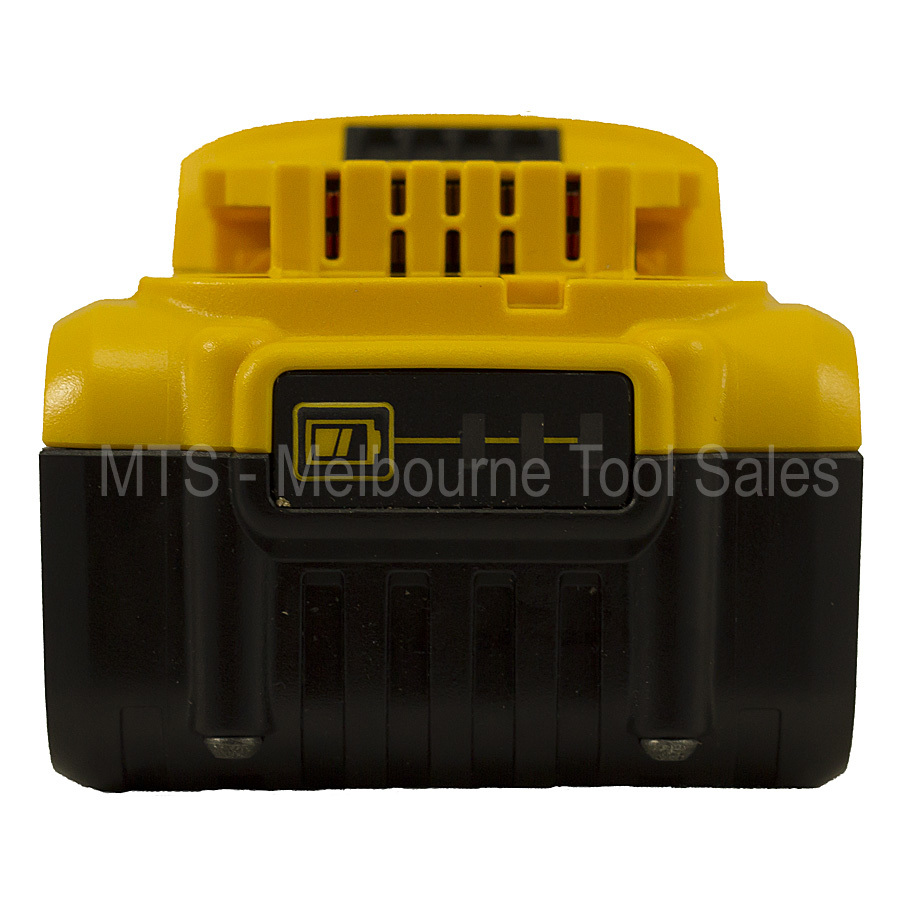

3-LED Fuel Gauge allows immediate feedback on state of charge to ensure charge state is always at hand.
No Memory and virtually no self-discharge for less downtime and maximum productivity on the job site.
Lightweight and compatible with entire line of 18V / 20V MAX tool range


Battery chemistry: Li-Ion
Voltage    18V / 20V
Nail Diameter: 1.6 (16Ga) mm
Magazine angle: 20 °
Magazine loading: Rear
Nail Length: 32 - 63 mm
Magazine capacity: 110 Nails
Weight    2.35 kg
Nailer Operating Mode: Bump and Sequential
Integrated Belt Hook: Yes
Jam Clearing: Tool free

Voltage: 10.8:14.4V:18V:20V
Battery chemistry: Li-Ion
Charging current: 4.0 A
Charging Time :30 (1.5Ah) min

Voltage: 18/20V
Amp Hour : 5.0AH
Charge Time: 90 min

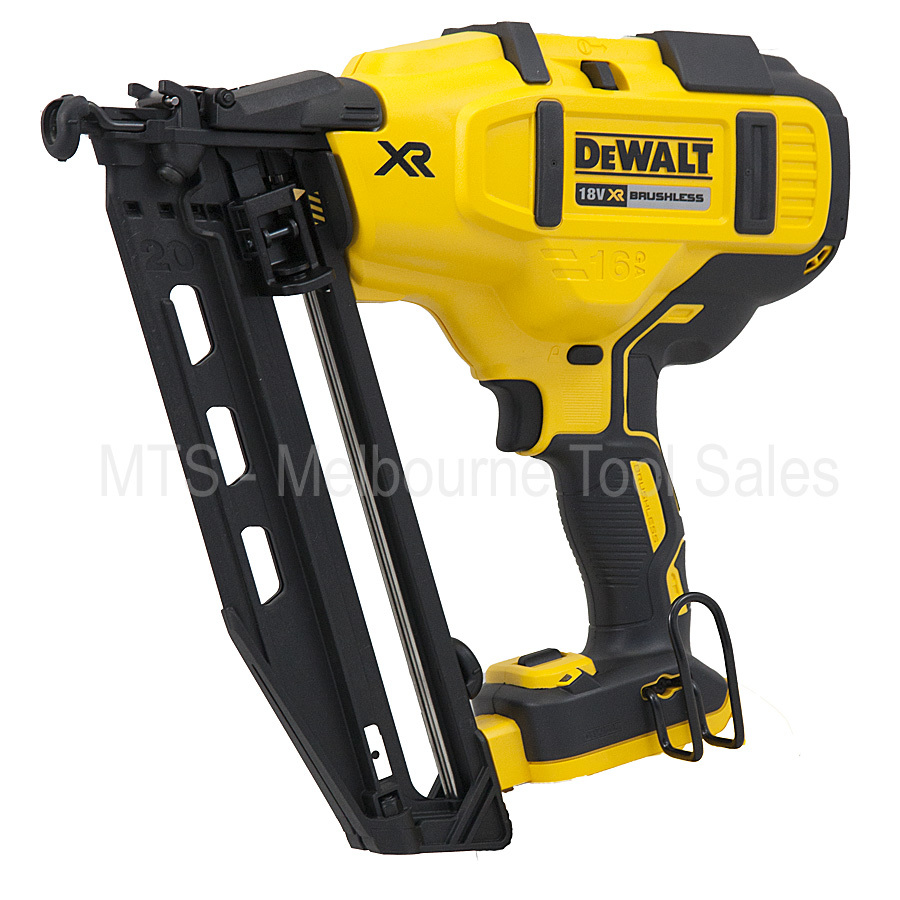

1 x Dewalt Fixing Gun - DCN660

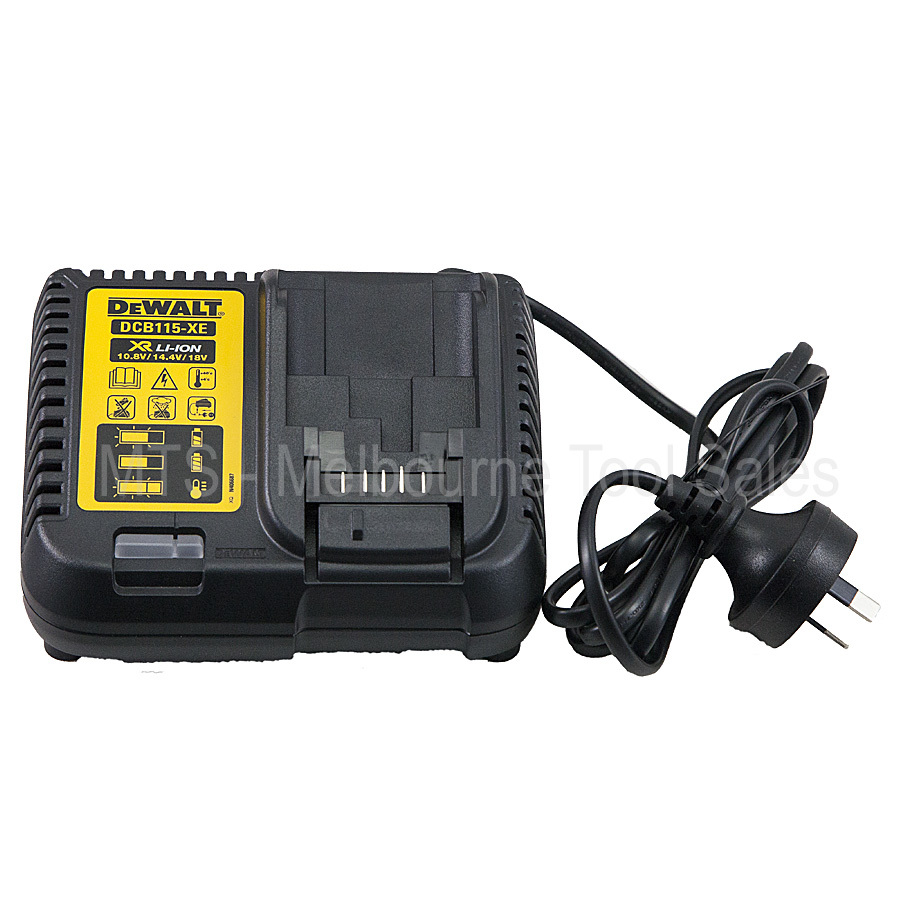

1 x Dewalt Charger - DCB115-XE

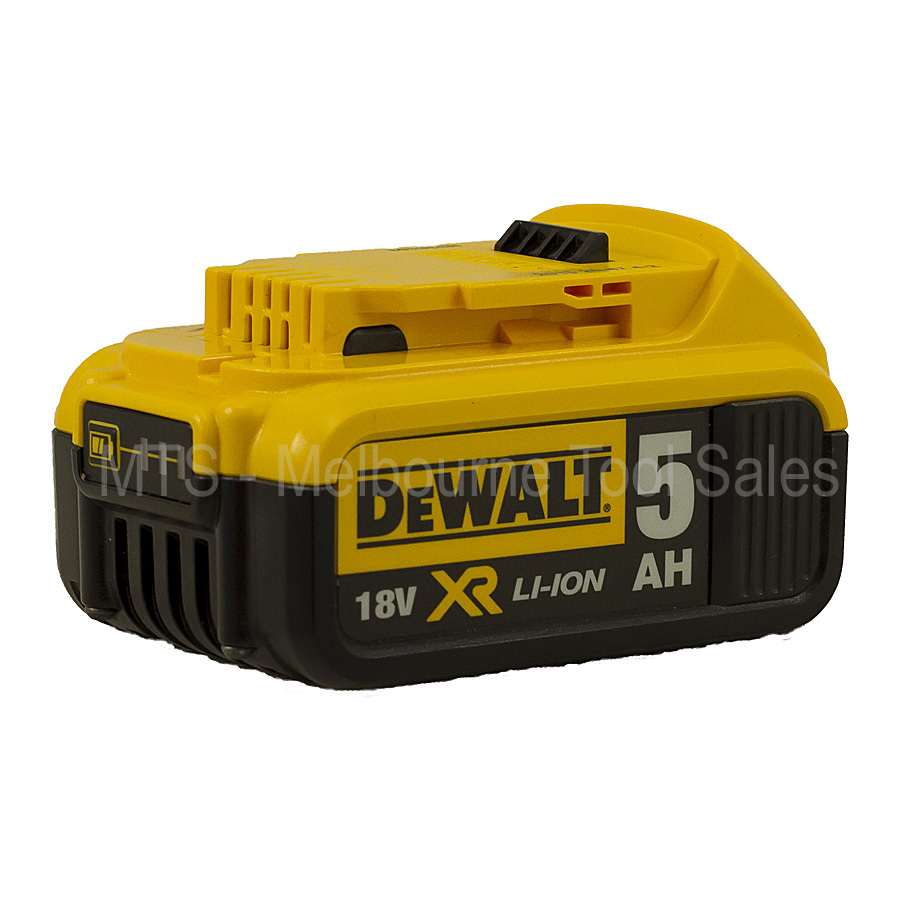

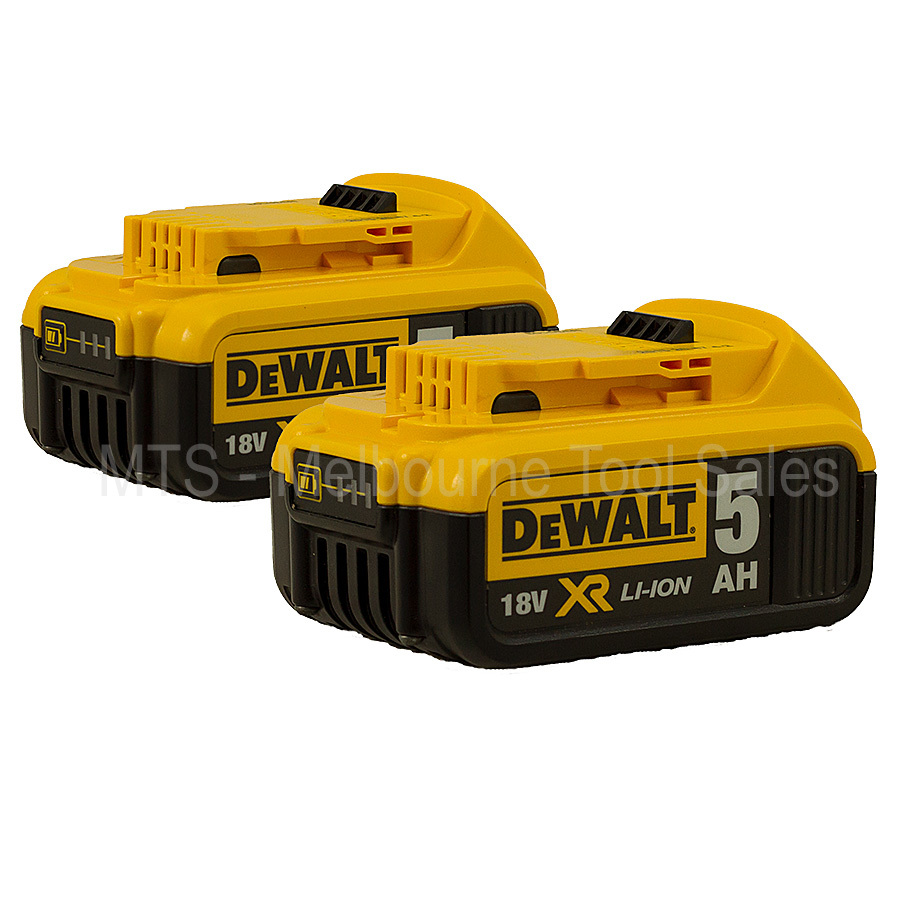

2 x Dewalt XR Premium Batteries - DCB184
1 x Dewalt Case
